TNT5

CE EN15194:2017
TNT5
TNT5
TNT5
TNT5
TNT5
TNT5
TNT5

TNT5

CE EN15194:2017
DİŞLİ

TRANSMISSION

Shimano 6 Gear

DİŞLİ

BATTERY

36V 8.8Ah

DİŞLİ

ENGINE

RKS 250W

25 KM/H

MAXIMUM SPEED

35-45 KM

DRIVING DISTANCE

4-6 HOUR

CHARGING TIME

250 W

MAXIMUM POWER
Simple and Elegant

Simple and Elegant

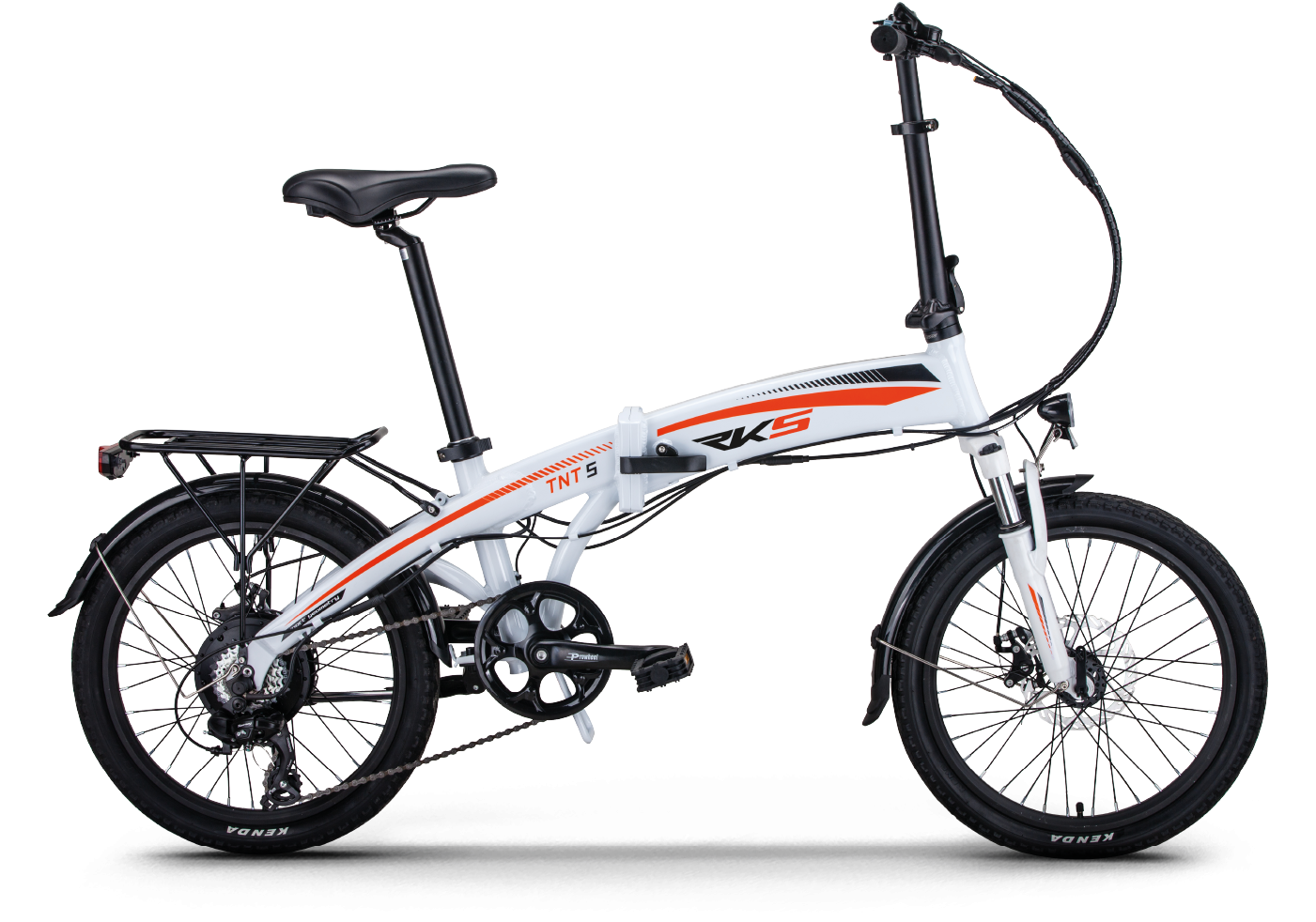

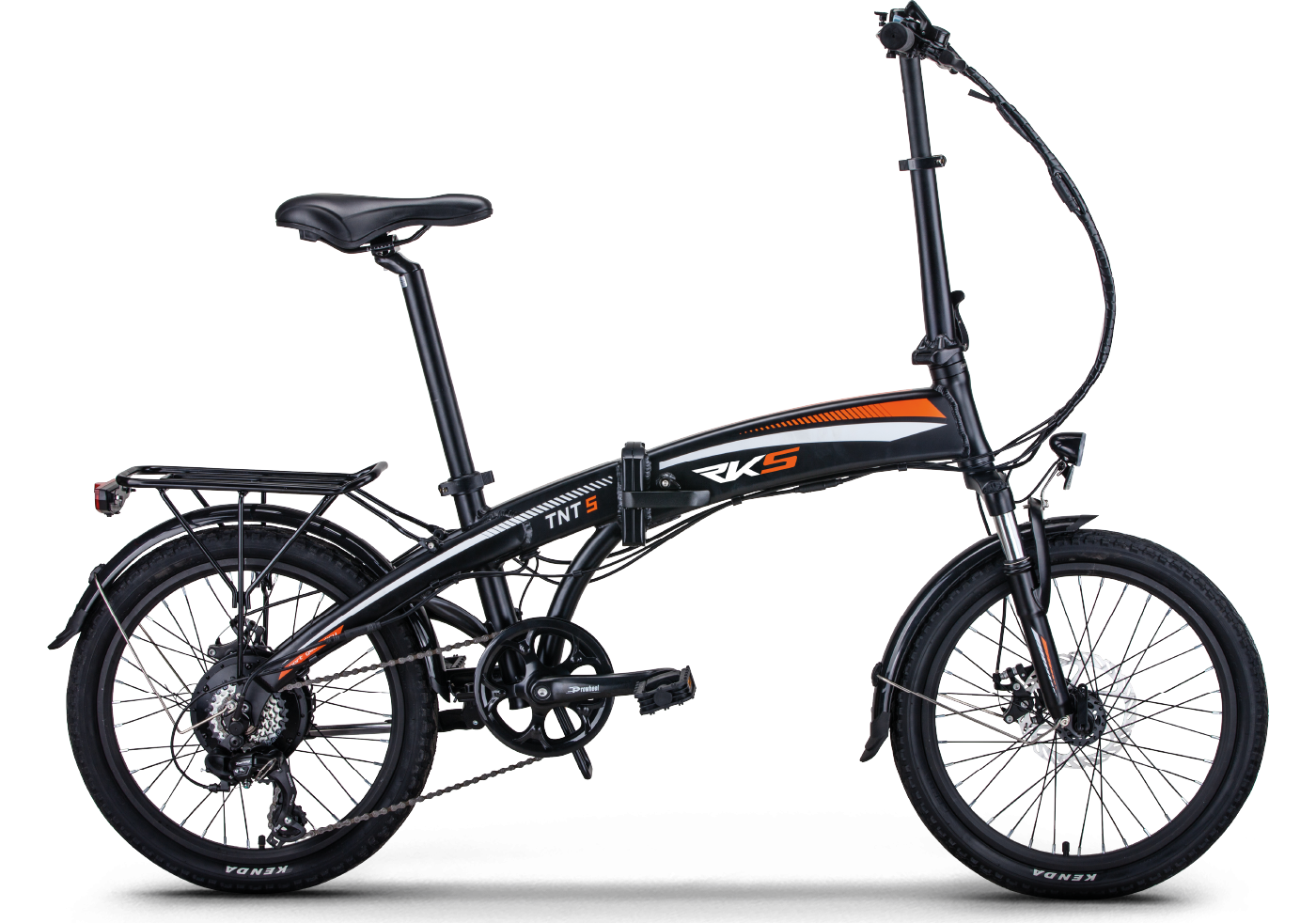

You will be fascinated with the TNT-5 model at first look. Get ready for journeys that you would’nt want to end with the TNT-5, which achieves perfection with simple and modern touches in addition to the classic bicycle design.

Quality Equipment

Quality Equipment

The TNT-5 model is equipped with best in class features and materials , both in terms of performance and quality.

Pratical and Fast

Pratical and Fast

The TNT-5 can instantly respond to all your needs and all other features that instantly give you information you need while driving.

TECHNICIAL SPECIFICATIONS

    • Motor

      RKS 36V 250W

    • Battery

      36V 8.8Ah

    • Top Speed

      25 km/h

    • Range

      35-45 km.

    • Charging Time

      4 – 6 Hours

    • Wheel

      20” Spoke

    • Crank Set

      Prowheel PRO-R42PP

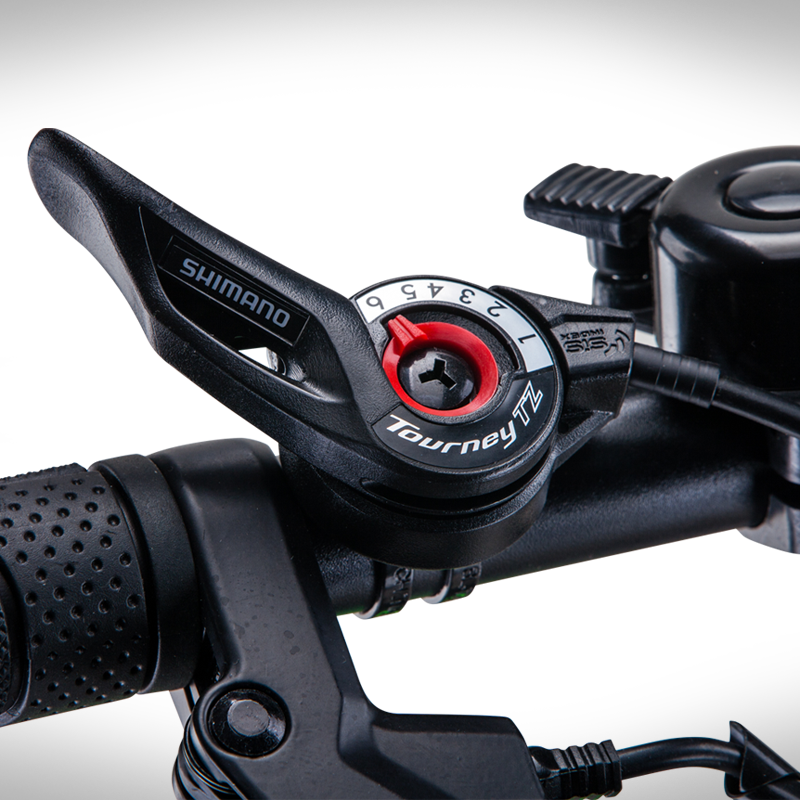

    • Shifter Right

      Shimano TX30 6SP

    • Rim

      Alloy Double Wall 20”

    • Front / Rear Tire

      Kenda K-935 20”

    • Front / Rear Brake

      YX-DB06 Alloy Disc / Disc

    • Display

      S866 LCD Display

    • Saddle

      Gel Comfortable Sport

    • Freewheel

      Shimano Multiple Sprocket MF-TZ500

    • Chain

      KMC M30

    • Fender

      Plastic

    • Front Fork

      Suspension Fork Alloy Crown

    • Front / Rear Light

      36V Controled By Display / Plastic LED

    • Electronic Cable

      Waterproof Harness

    • Rear Derailleur

      Shimano RDTY300D 6SP

    • Net / Max. Weight

      27 kg. / 127 kg.

* Electricity consumption values vary according to driving conditions. RKS Motor reserves the right to change the product specifications and colors without notice.

CHASSIS DRAWING

TTH 6045 mm
HTL 120 mm
STL 402 mm
HTA 72°
STA 76°
CSL 461 mm
WB 1150 mm
