TECHNICIAL SPECIFICATIONS
-
- Motor
RKS 36V 250W
- Battery
36V 7.8Ah
- Top Speed
25 km/h
- Range
30-35 km.
- Charging Time
4 – 6 Hours
- Wheel
20” Spoke
- Crank Set
40T 152mm
- Shifter Right
Shimano ASLTX30R6AT
- Rim
20”*1.95 Alloy Double Wall
- Front / Rear Tire
Kenda 20”*1.95 K1088

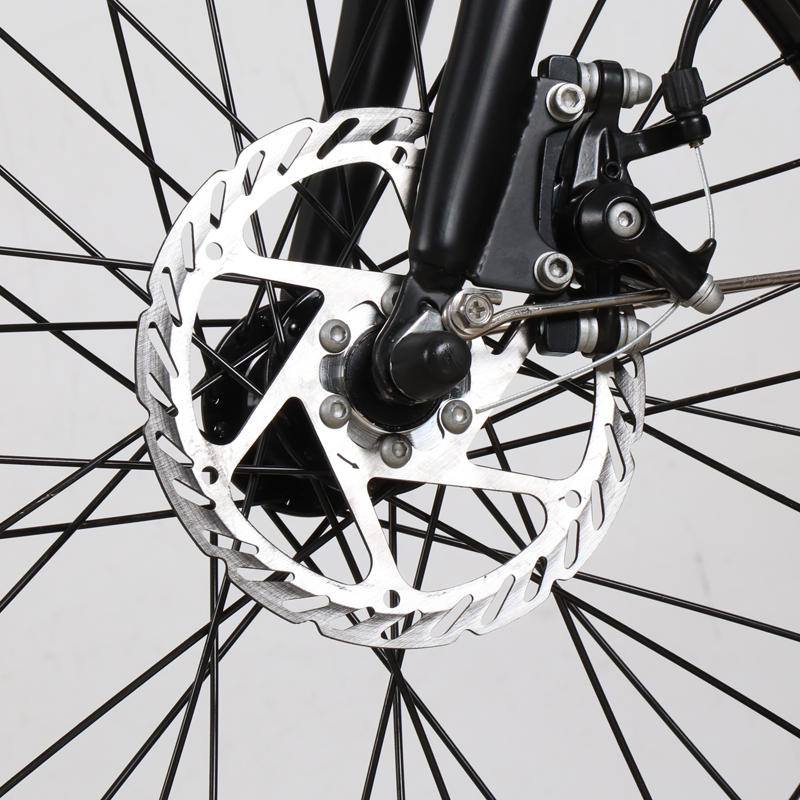

- Front / Rear Brake
YC-MK6.4 Disc / YC-MK6.4 Disc

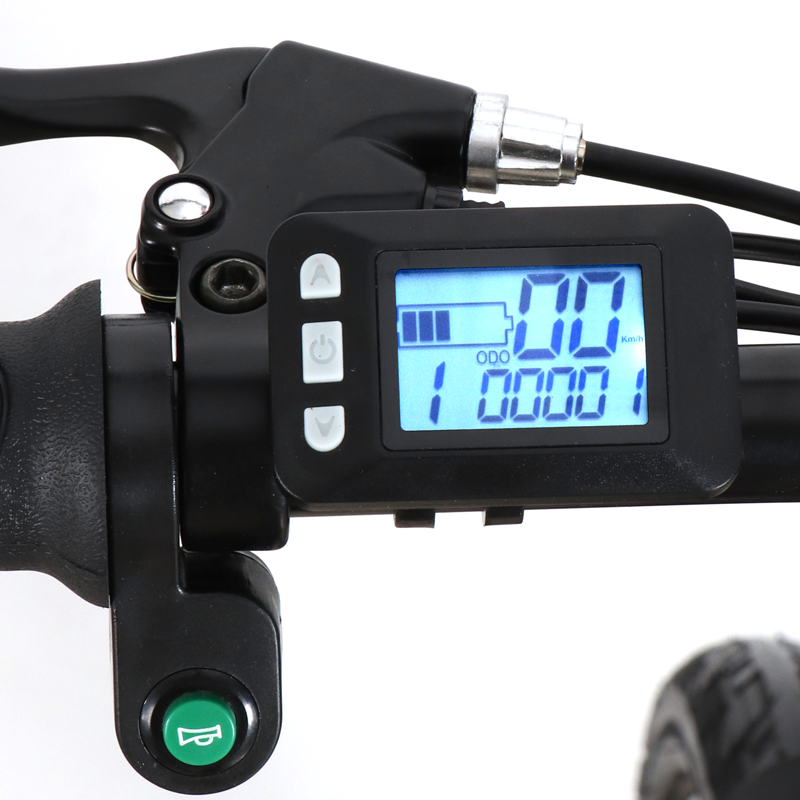

- Display
LCD 861
- Saddle
Comfortable
- Freewheel
Shimano AMFT5006428
- Chain
KYC410*98L
- Fender
Steel Matte Black
- Front Fork
Suspension

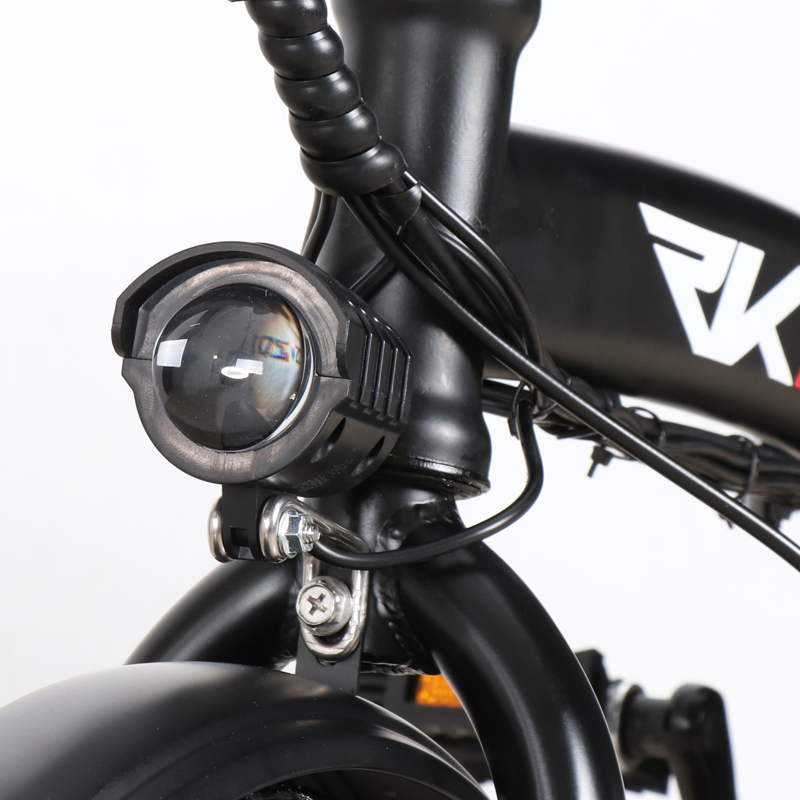

- Front Light
36V Controled By Display
- Rear Light
Plastic LED
- Electronic Cable
Waterproof Harness
- Rear Derailleur
Shimano ARDTY21ASSMBS 6SP
- Net / Max. Weight
24 kg. / 124 kg.
* Electricity consumption values vary according to driving conditions. RKS Motor reserves the right to change the product specifications and colors without notice.
CHASSIS DRAWING
